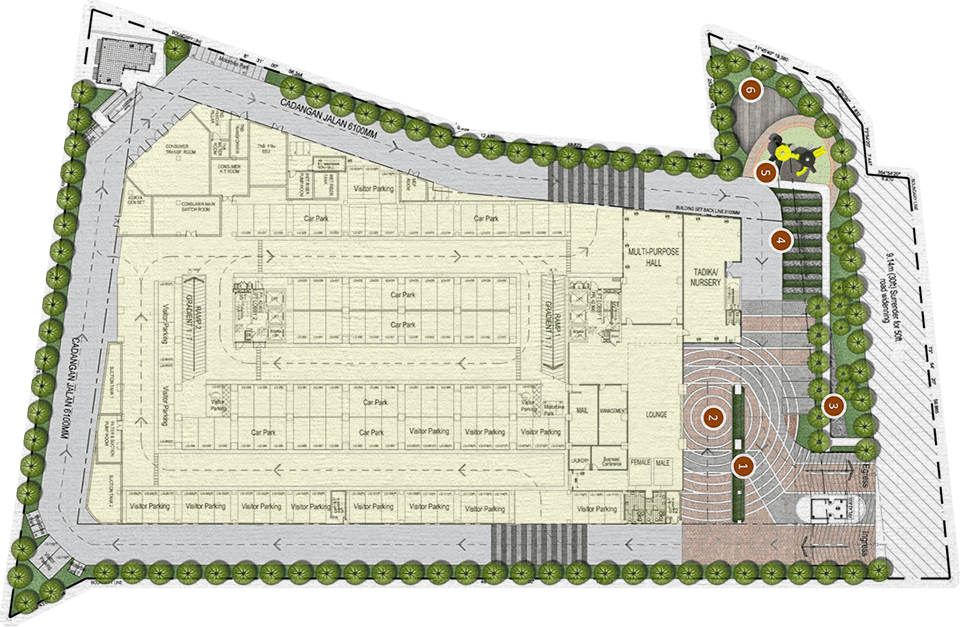

GROUND
FLOOR plan
ground floor landscape

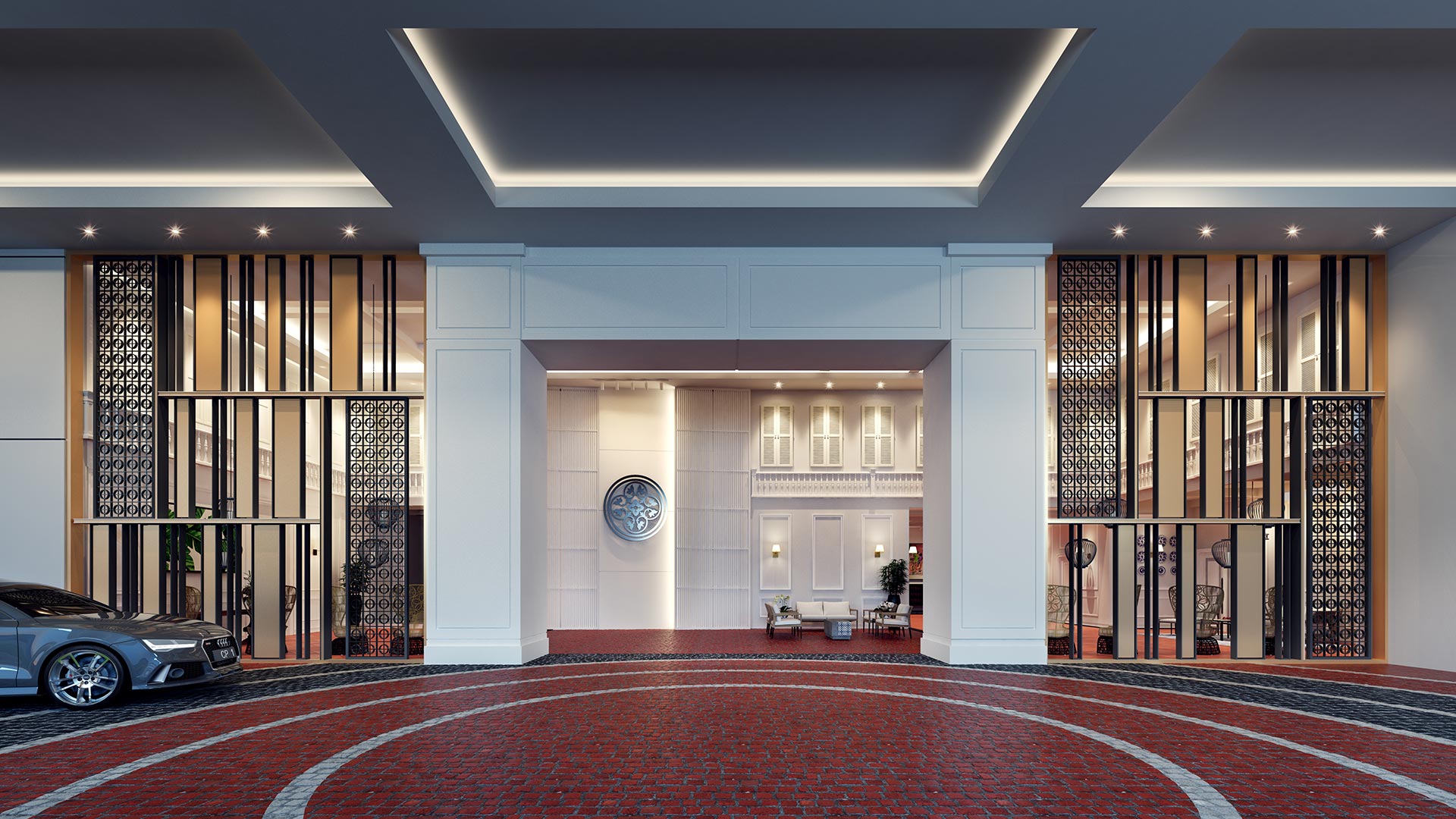

1. Welcoming Green Island | 2. Drop-off Area | 3. Planting Strip | 4. Strolling Path
5. ‘The Good Old Days’ Playground | 6. Yoga Deck

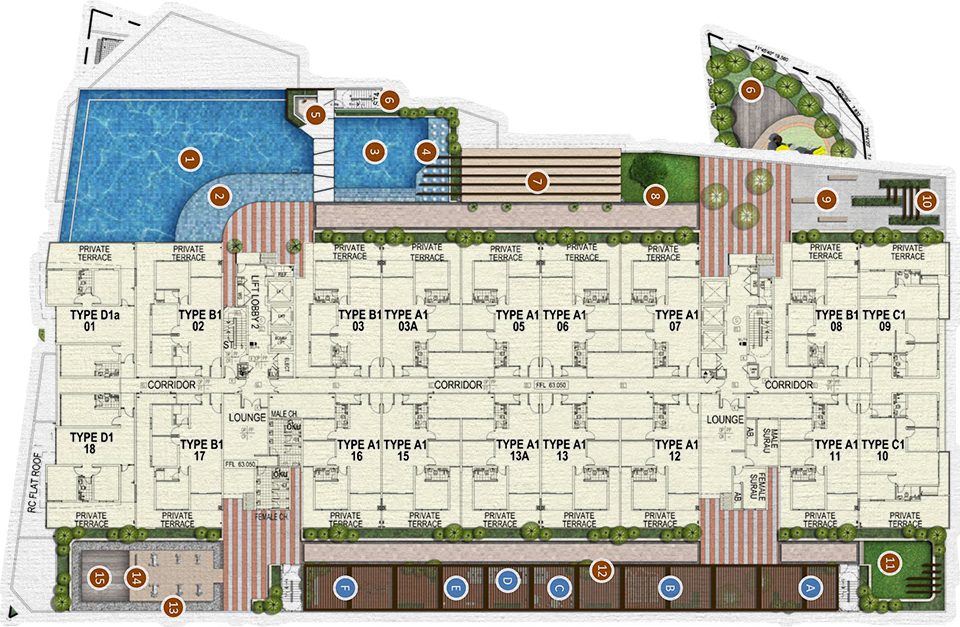

LEVEL 6
LANDSCAPE plan
facilities

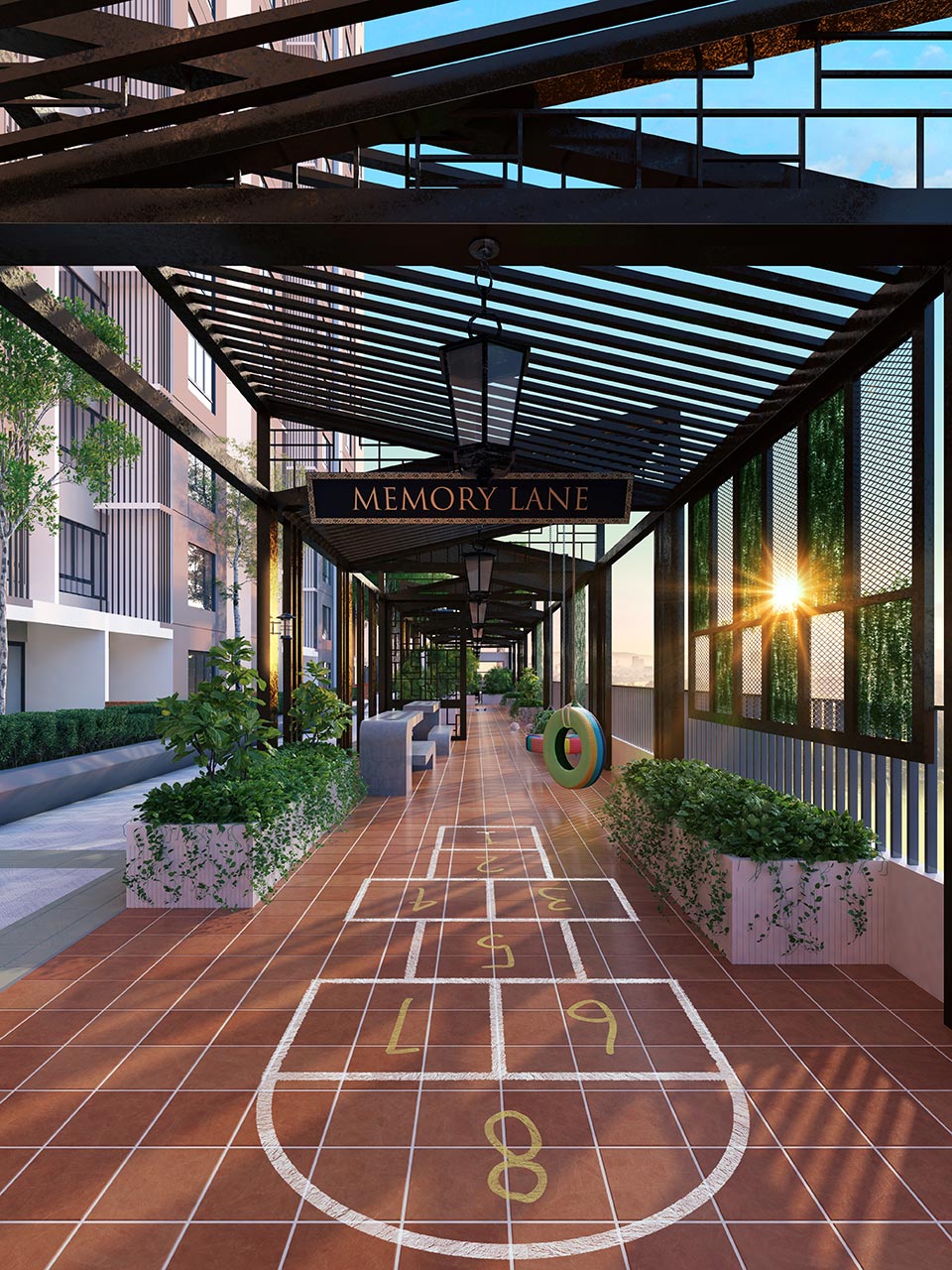

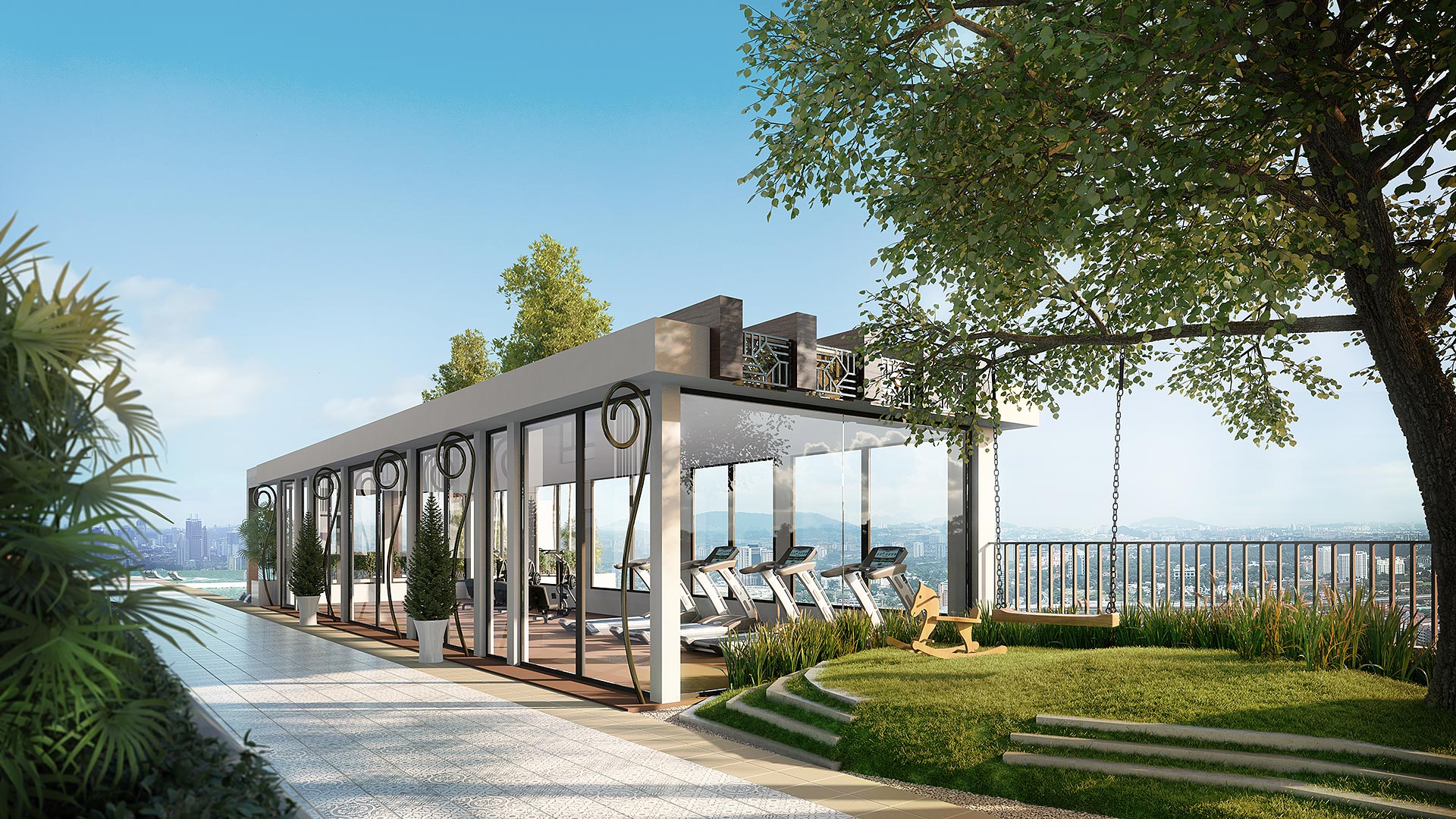

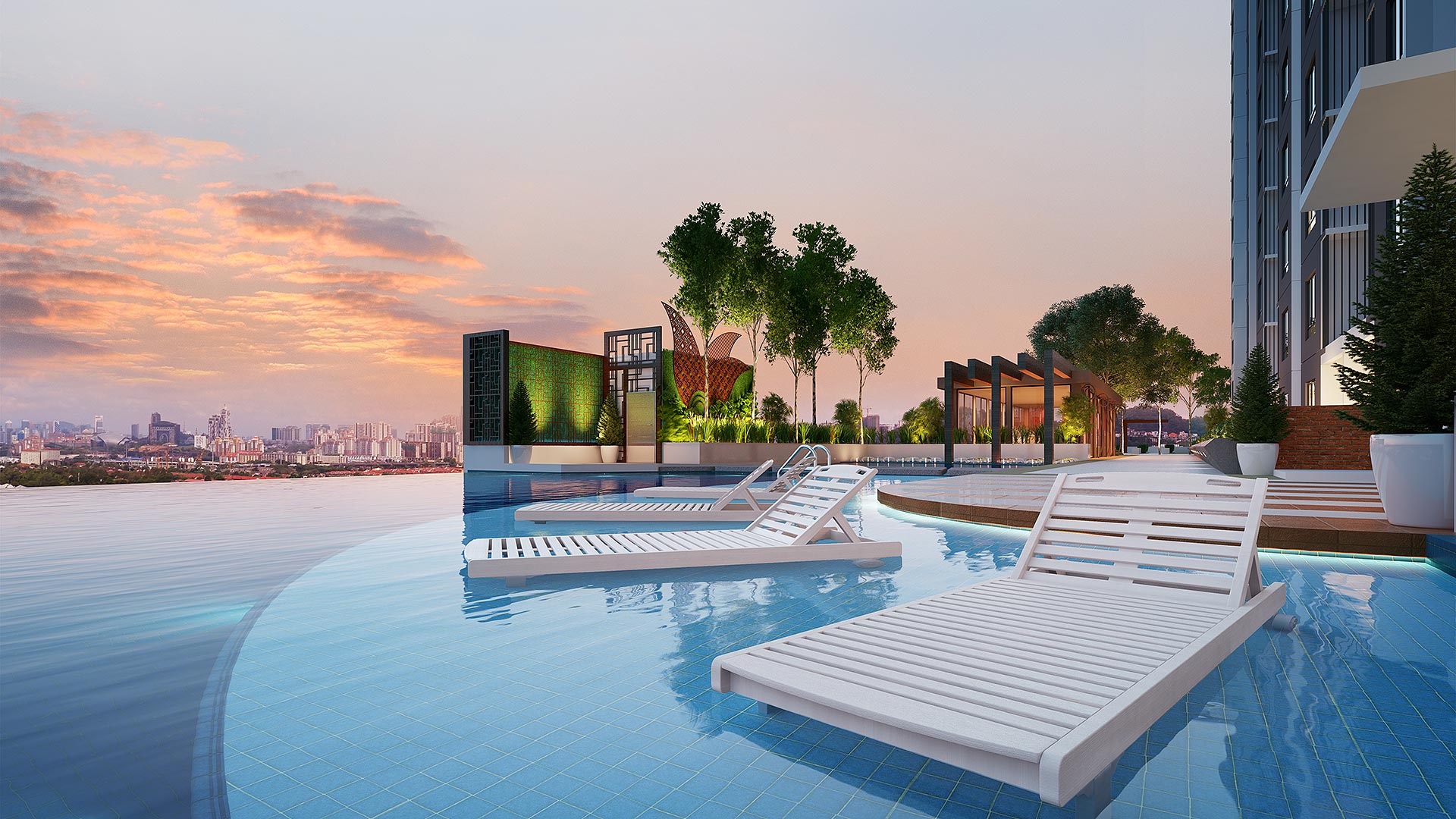

1. Infinity Swimming Pool | 2. Sunken Deck | 3. Wading Pool | 4. Water Fun Play | 5. ‘Outdoor Shower | 6. Signature Green Wall | 7. Gymnasium | 8. Resting Mound | 9. Transition Lounge | 10. The Calm Garden | 11. Green Lawn | 12. Memory Lane A. Chess Lounge | B. Snake and Ladder | C. Fun Play Table | D. Congkak Station E. Swing Pod | F. Hopscotch | 13. Reflexology Path | 14. Outdoor Fitness | 15. Taichi Deck

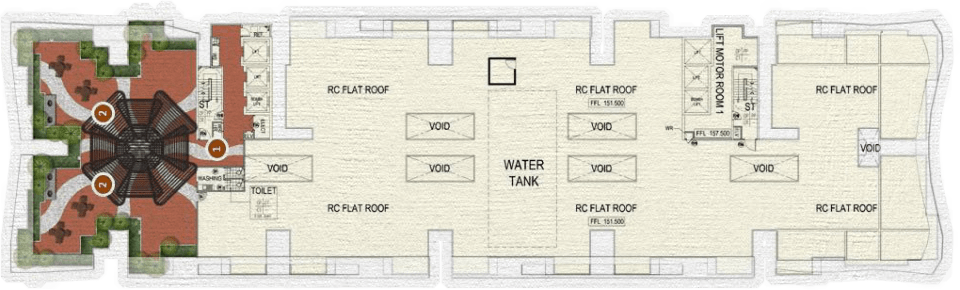

ROOF
TERRACE plan
rooftop landscape

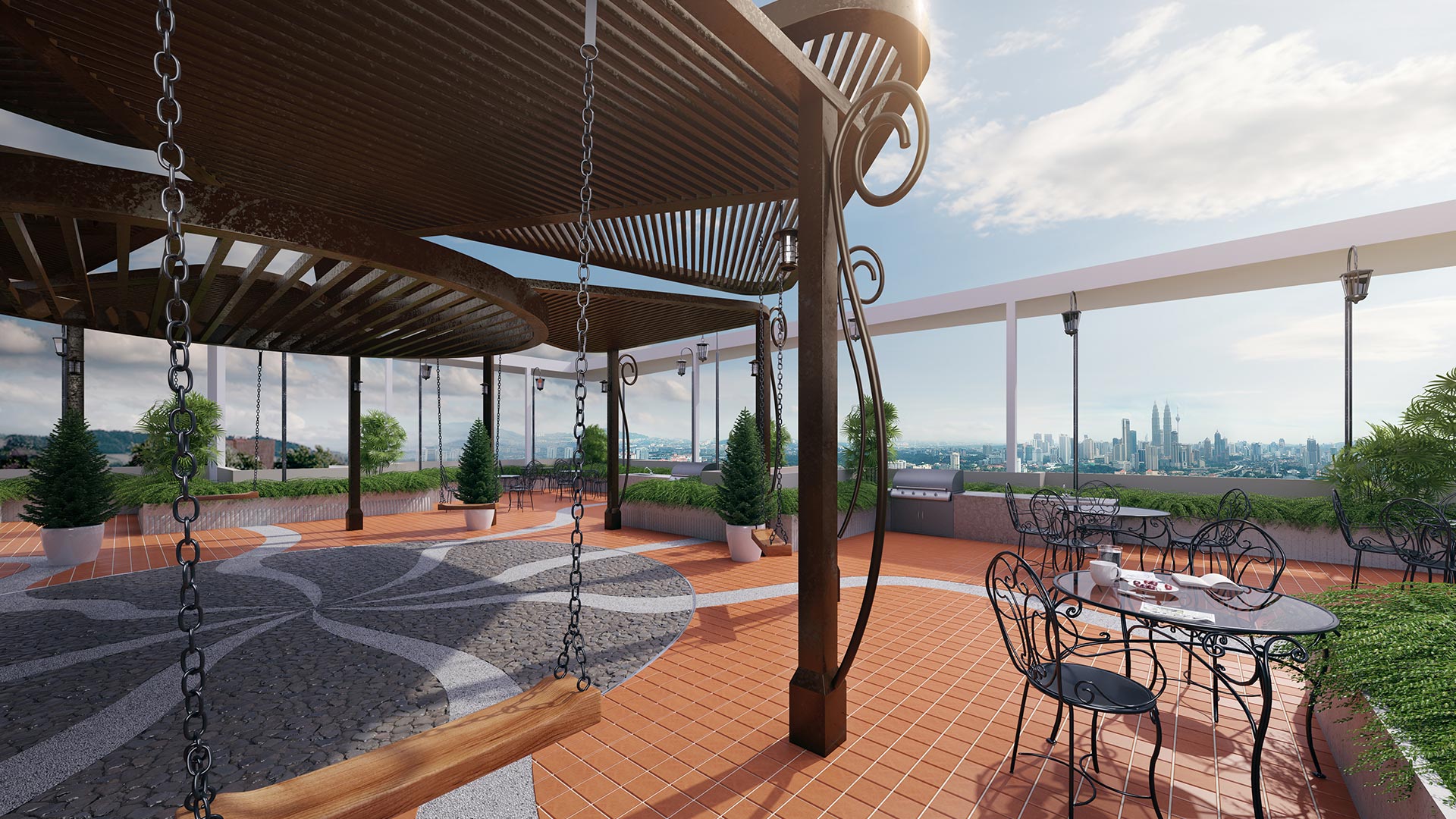

1. Resting Piazza | 2. BBQ Lounge

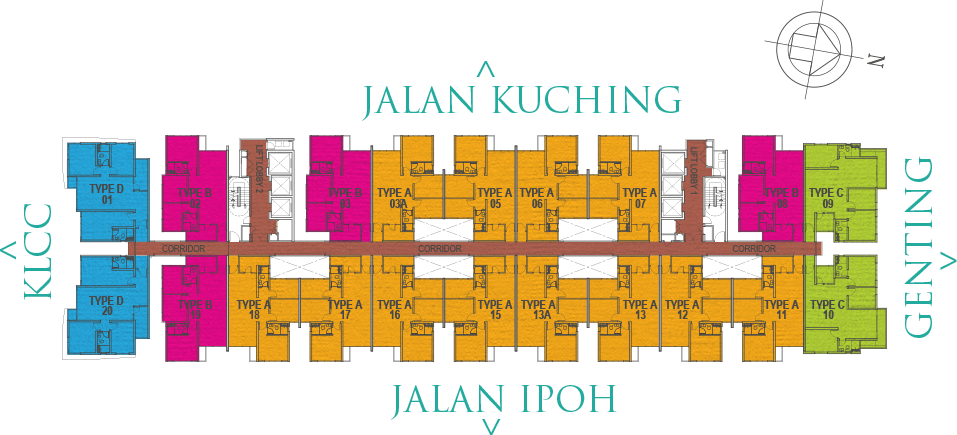

Typical
Storey
plan
Typical
Type A
Layout
878 sf.
Typical
Type B
Layout
878 sf.
Typical
Type C
Layout
1018 sf.
Typical
Type D
Layout
1015 sf.
At the centre of it all
Specifications
| STRUCTURE | Reinforced Concrete |
|---|---|
| WALL | Reinforced Concrete Wall / Brickwork |
| ROOF | Reinforced Concrete Flat Roof |
| CEILING | Skim Coat / Plaster Ceiling |
| WINDOWS | Aluminium Framed Window |
| DOORS | |
| - Main Door | Fire Rated Timber Door |
| - Others | Timber Flush Door / Aluminium Framed Glass Door (for Type C & all units at level 6 only) |
| IRONMONGERY | Quality Lockset |
| WALL FINISHES | |
| - General | Plaster / Skim Coat & Paint |
| - Bath 1 / Bath 2 | Quality Porcelain Tiles Up To Ceiling Height |
| - Kitchen & Yard | Quality Ceramic Tiles Up To 1500mm |
| FLOORING FINISHES | |
|---|---|
| - Entrance / Living / Dining | Quality Porcelain Tiles |
| Bedroom 1 / Bedroom 2 / Bedroom 3 | Laminated Timber Floor |
| - Bath 1 / Bath 2 | Quality Porcelain Tiles |
| - Kitchen & Yard | Quality CeramicTiles |
| - Balcony & Air-cond Ledge(Type C only) | Quality Porcelain Tiles |
| - Air-cond Ledge(Type A. B & D only) | Cement Render |
| - Terrace(for units at level 6 only) | Quality Porcelain Tiles |
| SANITARY FITTINGS | |
| - Single Bowl Kitchen Sink | 1 nos. |
| - Wash Basin | 2 nos. |
| - Shower Rose | 2 nos. |
| - Toilet Roll Holder | 2 nos. |
| - Water Closet | 2 nos. |
| - Tap Point | 3 nos. / 4 nos. (For all units at level 6 only) |
